  • Understanding electricity terminology

    With the recent bout of load shedding, everyone’s been writing about electricity. The problem is that many people get things wrong, or apply conventions which are less useful than they think.

    The basics

    Electricity is fundamentally about the flow of electrons. You may say that it is also about magnetic fields, but most of the terminology you’ll be seeing in the articles about load shedding is about making electrons move. Now, electrons are very small, so it makes sense to count them in big groups rather than individually. In the SI system, the coulomb (C) is defined as exactly 6.241×1018 electrons. You can think of this as equivalent to something like a truckload of coal. Since every material we work with has many electrons already, just having them is not particularly useful. Electrons can do useful things when they are in motion. When there is a flow of electrons in a conductor, this is referred to as current and measured in ampere (A). 1 A = 1 C/s, although technically the ampere is the base unit and the coulomb is the derived unit in SI, so 1 C = 1 A⋅s . To continue our analogy, if coulomb is like “truckloads”, ampere would be “truckloads per day”.

    Flowing electrons can be harnessed to do work in the same way that a flowing river can be harnessed. The rate at which they can do work is related not only to how fast they are flowing (the current) but also to the potential difference (measured in volts, V) between the end points. In a river, this would be the pressure. Work is measured in joules (J), which is also the unit of energy. The rate at which work is done (also called the power) is measured in watt (W). 1 W = 1 J/s. For a constant current (DC), the power is the product of the current and the potential difference. This means that 1 W = 1 V⋅A. This is approximately true for power supplied by batteries. For a thoroughly mixed metaphorical space, let’s say that energy (J) is like a distance and power (W) is like a speed.

    It gets a little more complicated if the current is not constant. The kind of electricity Eskom supplies is sinusoidally varying (AC), which means that we need to distinguish the “apparent power” and the “real power”. This Wikipedia page is a pretty good resource for this idea. The calculation doesn’t change the units in SI, although there are conventions which I will discuss a bit later.

    In terms of the load shedding, W is the unit that will be used to talk about the amount of load to be shed. Load in this context is the same as power.

    Orders of magnitude

    Some of the SI units discussed above are not sized reasonably for everyday use. For instance, a 100 W lightbulb burning for one day will consume 8 640 000 J of energy. For this reason the SI has prefixes for different orders of magnitude. I can choose to express the energy consumed by that lightbulb as 8.64 MJ to save space. It’s anyone’s guess why the load shedding limits are reported in MW rather than GW. Why say 1000 MW when you could have said 1 GW?

    The problem of time

    In the discussion above, I have restricted myself to the SI system. The SI unit of time is the second (s), and all the units which reference time are built using the second. Time calculations are tricky, because of the fact that there are 60 seconds in a minute and 60 minutes in an hour. Those factors aren’t powers of 10, so they don’t fit smoothly into the decimal system that SI uses. This means that in various industries, the quantities discussed above have been measured using different time units. For instance, your electricity bill probably specifies your electricity usage using the “kWh”, which is the energy used by a 1 kW device operating for 1 hour. Notice that this is the same dimensional combination as the joule. 1 kWh = 1 kW⋅h and 1 J = 1 W⋅s. In fact, 1 kWh = 3.6 GJ, so there’s no real nead for the kWh, even in terms of easy magnitudes. The real difference boils down to the difficulties of manipulating factors of 60.

    When measuring the storage capacity of batteries, one will mostly see A⋅h being used rather than the dimensionally-similar C. Smallish batteries like AAs typically have capacity of around 10 kC (meaning that this is the number of electrons they can push around a circuit), but you are more likely to see that reported as 3000 mAh. I believe this is again due to the problems of time calculation, as there shouldn’t be much other difference between using A⋅h instead of A⋅s.

    The kWh is such a popular unit of energy that it is even used for derived rates. People will report the average energy production of  the Jasper solar facility as 180 000 MW-hours annually rather than saying that it will produce 648 TJ per year or produce at a rate of 20.5 MW on average over a year

    Conventions

    There are people reading this who will object viscerally to the calculation above, especially if they have been in the electricity industry. There are certain conventions regarding units which are widespread but don’t really make much sense from a dimensional point of view. One of them is that electrical energy is measured primarily in the kWh family of units, while the joule is restricted to other forms of energy. They would say that it is not proper to report the energy production of that solar plant in TJ as that sounds more like the energy supplied by fuel.

    Similarly, if you refer to the discussion about power calculations for time-varying current, there are people who insist on saying V⋅A is different from W rather than saying apparent power is different from real power and using W for both.

    Peaks and averages

    The last confusing thing about talking of energy is in being clear about peaks and averages. To continue the car analogy, it is pretty clear when someone says that they will travel 100 km in 1 hour that they will average 100 km/h but that they probably spent some of the time above that speed and may even have hit 160 km/h at some point. Remembering that the distance is like energy and that speed is like power, we can say that the 774 PJ of energy SA used in 2010 according to Wolfram Alpha means that we averaged 24.5 GW for that year. Why do we have a problem if Eskom has around 41 GW of generating capacity? For one thing, not all that capacity is on line at once. Due to various factors Eskom only has about 24 GW of generating capacity on line right now. Of course, the other problem is that peak demand is more than average demand. The load shedding of 4 November 2014 happened on a day where there was 28 GW of demand, leaving Eskom 4 GW short.

    While I’m on this topic, let’s also explain the somewhat confusing fact that the Jasper solar energy plant I linked to earlier reports “Size: 96 MW-DC installed capacity; 75 MW-AC net generation, Electricity Production: approximately 180,000 MW-hours annually”. We translated that last number to 20.5 MW. So what’s happening between the 96 MW and the 20 MW? The 96 MW is what the panels will produce when they have 1 MW/m² of solar irradiation. In SA, we have more like 1.2 MW/m², so they’ll see more than that at peak production. This is a bit like the maximum speed in the book that came with your car. Often you can get better than that if you run at the coast or use better fuel than they tested with. The 75 MW is pretty clear, that’s the amount of AC power they will deliver under the same conditions as the 96 MW was calculated. This includes the use of the station of its own power and conversion losses. Of course, the sun is only available part of the day, and the light is not as strong for the whole day either. There is also maintenance and other stoppages, which cuts the effective rate of production down to the 20 MW number. This final number divided by the “nameplate capacity” of 96 MW is known as the capacity factor, and 20 % is about par for the course for solar.

    Wrap-up

    So there you have it – this should enable you to decipher the different terms used in articles talking about electrical energy (and perhaps to do some research about that battery backup for your power at home). My last word on the matter is that you should be on the lookout for common misperceptions about units, like that kWh for some reason means kW/h instead of kW⋅h. Hopefully the discussion above will show you why kW/h doesn’t make any kind of sense.

  • One day software bootcamp for engineers

    Last week I spent a day going over the basics of the Unix shell, version control using git and some Python with engineering students. Here are some of the things I said, links to interesting tools and my insights from crowd feedback.

    Motivation

    Every year, new project students arrive on campus and are asked to do larger projects than they are used to. The methods they have used for data processing up to now are usually not up to the task. The ubiquity of the spreadsheet means that most of them have opened their files in a spreadsheet and then manually applied whatever operations they needed. In my fourth year projects and also at postgraduate level, the problems of scale mean that this method probably won’t work.

    I’ve been inspired by the people from Software Carpentry to set up a longish session where I help students to install the software they need and start to understand the power of the tools. The goal is to get them over the initial stage where you don’t know anything to a place where they can search for the answer themselves. I don’t have permission from the Software Carpentry guys to call this one of their events, and I only loosely based my session on theirs. They appear to have more of a life-sciences focus, whereas I tried to use engineering-type data in my session.

    I also chose to do this in Windows, but to use a Unix shell in order to ease the transition for those who would end up using Linux for their simulation. It doesn’t make sense to throw someone into the deep end here. It’s better to feel like you can do something at the end of a session than being made to feel powerless.

    Installers

    I chose the following installers for the session:
    • The Windows version of git. This is a good start as it includes git-bash, which also has a great subset of the unix tools.
    • The Python(x,y) distribution of Python. There are newer distributions around, but this one is still up to date and very user-friendly. If you are going to be doing science in Python, you need a distribution like this, as the batteries-included philosophy of Python doesn’t extend to science (yet).

    Unix shell

    I start with a review of where Unix comes from. As an aside, I highly recommend In the beginning… was the commandline for a pep-talk about how awesome the command line is as well as the most complimentary description of Emacs I have ever read. It helps to keep a picture of a teletype in mind when working on the terminal as it informs many of the design decisions.
    Now that everyone is in line-by-line mode, we can start the installer. The first two screens provide talking points about the differences between the terminal and the shell, as well as a profitable digression on the problem of different end-of-line conventions.
    After running the git installer, you have access to git bash, which you can start from the start menu.
    Of course, we start with ls, and explain the idea of flags as well as the concept of a working directory (pwd and cd are introduced here, as well as . and ..). Then I move on to other commands, including echo, which allows me to explain how blobbing is handled by the shell rather than by each command we will be using. Most of this part is just me showing how useful the shell can be, with examples motivating cat, cut, grep, head, wc and some others. As the examples spin out, we start to use redirection and piping. I think it is more important to leave with a sense of awe at the possibilities, as well as some basic understanding of what to search for than any real expertise in the command line. It may also be useful to go through the Software Carpentry shell lessons.

    Version control

    Now that everyone is roughly comfortable with the command line, it’s time to start using git bash for what it’s named for: git.
    I’m not going to recapitulate the whole lesson here, especially because it’s better written up at Software Carpentry but the core is instilling a good set of nomenclature built around pictures which represent the structures git uses. First, here is how the repository commands work:
    Figure showing the parts of a git repository, with commands to move between them
    So this takes us up to basic commits. Now, we need to think about how commits relate to one another and how branching works. I use a visualisation similar to what GitHub uses, with dots for commits and arrow-boxes for branches.
    If you’re reading this to learn git, I recommend that you do the git code school for the basics and then work through the challenges on Learn Git Branching, which will give you a way to think about how branching and commit chains work:
    This interactive branching game is a great way to learn about git branching.

    Python for Octave/Matlab users

    All of the students in the session had learned programming in their undergraduate course, but most of them had learned Octave. This means that basic ideas from programming are already understood, but that the differences between Octave and Python are more important, because they may be working with a different mental model.
    I started with the way names work in Python, explaining the idea that Python variables shouldn’t be thought of as containers, as they are in Octave, but rather like labels. I did some of the stuff interactively, but if you’re reading this now, you only really need this article, which explains it with some great visuals. I can also highly recommend the Online Python Tutor site which allows you to generate these kinds of diagrams for running code and see each step. Here’s what that looks like for one of the examples in the article
    I also covered some tips on looping, mentioning the excellent Loop like a Native talk.

    Once these gotchas were covered, I also switched from the IPython terminal to the IPython Notebook. I gave a brief overview of how everything works and also mentioned that they need to study up on all the interesting magics.

    Then it was time to pack up!

    I can see why the SC guys do this as a two-day workshop, and I think if I do this again I will encourage students to bring files from their particular projects so that they can do some actual work rather than just examples. It’s always more meaningful to learn on a problem you actually want to solve than on some contrived example.

  • Managing scientific data and interchange with industry

    I spoke at a recent symposium on the difficulties in managing data interchange with industry.

    Just for some context, “industry” here stands for personnel involved in process control and modelling activities. My direct experience is in the petrochemical, mining and paper and pulp industries. I also show an example of data from a piece of analytical equipment.

    I’ve uploaded the source on GitHub here, and you can see the notebook without downloading it by using NBViewer.

    I’ve spoken about the pattern of intermediates on this blog before (in a slightly different context).

    Notably absent from this discussion are any kind of database, since my experience is that if you can’t e-mail it, it might as well not exist when talking to the kinds of people I work with. I’ve used sqlite quite extensively myself, but I have found most people want something they can double-click and just have it work.

    If you have different experiences, I’m always eager to learn. I am specifically interested in how people who use client-server databases for their data handle the problem of interchange.

  • Public transport in SA is not user-friendly enough

    I use public transport almost every day to get to and from work. I am a very happy user of the Gautrain train system. This causes some interesting problems and makes my life much harder than it should be when I have to go anywhere other than between my home and work.

    The Gautrain website is relatively informative about where the bus stops are and where the associated Gautrain buses go. The routes are presented in one interactive map on their website. I would have preferred if these routes were added to the Google Maps interface, because planning a trip means having two maps open – one view to the Google Maps interface so that I can search for the place I want to go and another view tediously synced to that one so that I can see if there is a bus near where I want to go. Sadly, this is the most user friendly public transport system I can use in my country. Here are some significantly more difficult-to-use alternatives.

    Tshwane bus

    I work at the University of Pretoria. Because I take the train to work most days, I don’t have access to a car when I am there. This means I have often tried to figure out how the Tshwane bus system works. Unfortunately I have never successfully planned a trip using this system as their timetables are completely opaque to me. The timetables are online, but the routes are simply listed in “Alphabetical order” and “Clockwise order” using the names of the routes. It appears that the routes are mostly concerned with going in and out of the CBD from the named suburb. Now, I lived in Brooklyn for five years, so let’s have a look at the Brooklyn route:

    BROOKLYN (10)


    ROUTE OUT    : From Thabo Sehume (Andries) between Pretorius & Francis Baard (Schoeman). Drive along Thabo Sehume, left along Jeff Masemola (Jacob Maré), Rissik, Justice Mahomed (Walker, Charles), Atterbury, Lois, Garsfontein, Corobay, Tucker, Gina, Corobay, Garsfontein, Anton van Wouw, Beethoven, Chopin, Duvernoy (Terminus).


    ROUTE IN    : Via Duvernoy, Lilken, Rover, Rudolf, De Klerk, Hermina, Rudolf, Rover, Beval, Coert Steynberg, Hugh McKinnel, John Scott, Issie Smuts, Duvernoy, Chopin,Beethoven, Anton van Wouw, Garsfontein, Corobay, Tucker, Gina, Corobay, Garsfontein, further the same in an opposite direction as far as cnr. of Justice Mahomed (Walker) & Bourke, via Justice Mahomed (Walker), Scheiding, Bosman, to City.

    I challenge anyone to use this without a pretty detailed street map in their hands. Doesn’t it make more sense to present this information in map form? Of course it does, that’s why this website exists, where a couple of people have taken it on themselves to get this information in map form, like this:

    Brooklyn 10 in graphical form

    Isn’t that much easier to understand? That website also allows you to add and remove a variety of routes so you can see which ones intersect and so on. Good stuff. Unfortunately it doesn’t show the location of the stops, nor does it assist you in route planning, so I can’t see how to get from the Groenkloof Nature reserve to the Menlyn Park Shopping centre in an easy way. In their defence, it does seem as though Tshwane have gone to the trouble of building a complete map of the bus system as one massive PDF which is designed to be printed out on A0 paper. Because most of us have an A0 printer hanging about. The big PDF does show you how poorly the bus system is designed to get around town rather than just go from your suburb to the CBD and back – there are almost no buses connecting around Pretoria, all just spokes emanating from the CBD hub:

    The hub-and-spoke Tshwane bus system
    So, this is not a good system for me to use to get where I want to go. I suppose I should be using taxis, but I’m a big fan of planning my route, so I’m not that comfortable with the idea of going to the taxi rank and asking around to find out which taxi will take me where I want to go.
    Another hope is the new Tshwane Bus Rapid Transit system, A Re Yeng. Right now that website doesn’t contain much information, but at leas the proposal document contains maps of the routes.

    Johannesburg

    The event that prompted this post was me trying to work out if I could get from Pretoria to the University of Johannesburg Kingsway Campus using public transport. I knew I could easily get to Gautrain Park station, but how to get West from there? I had seen a BRT station outside of the UJ campus, so I though I would be able to take that. The Johannesburg system is called Rea Vaya. I went to their website and was initially pleasantly surprised. They have maps of their routes! Unfortunately the interactive map appeared to show that there wasn’t a Rea Vaya route that went to the Kingsway campus, only a Joburg Metro bus, which wasn’t running at the times I needed to get to my destination. Luckily, I Googled around and found this brochure which has a more up-to-date map and mentions UJ Kingsway Campus as a stop on the T3 line. Armed with this knowledge I was able to find the T3 route “map”:
    The T3 Rea Vaya “Map”
    This is worth almost less than the Tshwane bus route descriptions as it is not searchable (being an image) and it gives no indication of direction. This kind of description is useful on the bus as it gives you a sense of how many stops you need to wait before you get off. It is useless off the bus or when planning routes, as it doesn’t allow for any kind of discovery of the information.
    An interesting extra point is that the website makes it very clear that you need a smart card to use the Rea Vaya bus. The page about smart cards proclaims “If you don’t have a smart card yet, you can get one – for free – from any of the five Rea Vaya customer care centres.” Of course, the exact location of these customer care centres is left as a delightful treasure hunt for the user. They aren’t indicated on any of the maps I found on the website. In fact, the only mention of customer care centres I could find was in the above mentioned brochure where they list the following six customer care centres:
    1. Carlton Centre East Rea Vaya Station (CBD)
    2. Johannesburg Art Gallery Station (Joubert Park)
    3. Orlando Police Station (Orlando)
    4. UJ Sophiatown Station (Melville)
    5. Indingiliza Terminus (Dobsonville)
    6. Bosmont Station (Bosmont)
    Clearly this system is targeted at people who already know the Johannesburg area intimately. How would a traveller coming from overseas, landing in OR Thambo and then proceeding using the Gautrain to Park Station obtain a Rea Vaya smart card? I suppose they would need to find each of these locations on their map and then perhaps walk there.

    Update: For future reference, I have determined that the Johannesburg Art Gallery station (number 2 in the list above) is the Rea Vaya customer service centre closest to the Gautrain Park station, by using this interactive map. It must be said that you still need to do way too much work to get to this information.

    When I tweeted @ReaVayaBus to seek help (“If I arrive at Park station on @TheGautrain, but I have not yet bought a smart card, can I buy a smart card there?”) , I got the noncomittal reply “You can get you Rea Vaya Smartcardat any Rea Vaya customere care Centre”. Because “You can get a smartcard at the Johannesburg Art Gallery station, 10 minutes walk from Park Station” would make it too easy.

    I’m not even going to start with the analysis of the Johannesburg Metrobus system as their routes are even more difficult to ascertain that the Twshwane ones.

    How it could (should) be

    Compared to my recent experience navigating through Barcelona, a city where I don’t even understand the language of most of the people or signs, public transport in SA is a nightmare. In Barcelona, I could use Google Maps on my phone to navigate to a place by simply typing its name into my phone. I was routed along the nearest set of public transport services completely automatically. I didn’t have to worry about finding stuff at all. In fact, the Gautrain has at least been incorporated into Google Maps, but the bus systems have not yet been, so I can get close but not really all the way. The Google Maps transit system is amazing. I can route and plan my journey with amazing ease, taking the times of the trains into account properly and it would allow me to figure out my cross-overs to the bus, but of course, that information is not on Google right now. If I were involved in the Johannesburg or Tshwane transport system I would be trying as hard as I could to work with them to get the information on their systems. This would be a thousand times better than trying to develop a system themselves.
    All route planning should be like this
    Now I suppose I’ve spent far too much time ranting about this, but I felt like I should at least get something out of all the time I’ve spent on these websites. My final decision was to take the car.

  • My programming history (part 1)

    I have been programming for a pretty good fraction of my life. In that time, I’ve thought about what my goals were in many different ways. This post is an attempt to get some of these thoughts to stand still for a while.

    In the beginning

    I started programming before the internet was widely available. Some of the first memories I have of programming is learning LOGO on green-screened Comodore 64s at school (this would have been around grade 1, when I was 7 in 1985) and copying BASIC code from magazines on our XT computer (perhaps a little later, around 1988). The most difficult programs were the ones that contained pages of hex codes for pre-assembled parts of program.

    Hex codes for a program on a magazine page

    At this point, I didn’t have much of a grasp on the techniques involved, but this was a cool way to get the computer in our garage (my mother wouldn’t allow it in the house) to do things. In many ways this was the predecessor of today’s copypasta programming culture: many people who don’t really know what the codes do copying from the sages to get something useful. I was intrigued and started digging into my dad’s copies of the BASIC manual that came with the computer, slowly teaching myself how this stuff worked. I must give a lot of credit to my dad here, as he was always keen to point out how I should be using functions or other programming structures. He had experience with programming as a systems analyst.

    I did computer science in school. We learned Turbo Pascal. I was initially not very fond of this, as I preferred the Borland C++ environment. In Std 9 I helped to organise the movie-themed matric farewell and wrote a database program (in C++) which allowed us to print tickets at the gate, as though you were going to a movie. This was using the text-mode library I had developed which looked a little bit like curses (although I didn’t know it at the time).

    Text-based interface similar to the one I wrote

    As a final matric project I developed a program which would help you set and solve crossword puzzles. Initially I had wanted to make it automatic, but I couldn’t sort out the algorithm, and I had my hands full as it was developing my own graphics library which handled graphical input on a grid and also had a whole font system and mouse access working via hand-tuned assembly routines in Mode 13h. Because we used Turbo Pascal for school, I used that. Turbo Pascal allowed for very easy inclusion of assembly in functions, and I used it perhaps more liberally than I should have. I was quite proud of this program, but I will admit that it was terribly written.

    By the time I was finishing school I was programming for fun and profit. I wrote a Windows program to look up vendor information based on postcodes for call-center operators which I ended up selling to an insurance company. I had migrated from Visual Basic to Delphi when I started learning Pascal in school and had also learned about SQL databases and through contact with these industry programmers.

    Up until this point, most of the programs I had written were basically user interfaces. The problems the programs solved weren’t particularly complex algorithmically, but the trick was figuring out how to allow interaction and how to make certain effects happen on the screen.

    Hand-coding assembly is a waste

    I had a couple of friends who were into the same things, including running a BBS together. Through the BBS, we got into the demoscene and I was driven to figure out the techniques they were using to get the computer to do these amazing things. We would try to outdo one another with optimising our graphics routines. For instance, we would calculate frame rates at line drawing. The kinds of problems I was solving here were more satisfying to me on the algorithmic level. It felt really good to go from a naive line implementation to the Bresenham’s line algorithm and see the huge difference an algorithm could make to rendering speeds.

    I hand-optimised my assembly code and dug into the technical reference manuals while one of my friends wrote more portable C code. When the Pentium chips came out my hand-optimised code was now outperformed by his due to the power of a good compiler. This was a breakthrough moment for me – I realised that this time I had spent had not been a good investment. It had won in the short term, but in the long term higher level languages would win over lower level ones.

    So, when I got to university and learned Matlab I was intrigued by how much I could do with this small amount of code. Around this time I also started to get into Linux (another thing I had been introduced to on the BBS) and there weren’t really many cross-platform GUI libraries at the time, so I ended up focusing on what I liked best: algorithmic developments which would lead to faster solutions. Looking back now, I guess that Matlab was also the first time that I came across a well-documented and extensive set of libraries and the idea that the best way to solve a problem was to find a library routine which could get you close rather than implementing a new algorithm from scratch.

    I used Matlab and Quattro Pro for most of my programming jobs throughout my undergraduate career, but I also learning to program my HP48GX calculator. This was an interesting mind-expanding moment as it introduced me to the concept of stack-oriented languages and would make it easier to understand Postscript later.

    Good programming practice and the move back to text

    I graduated in 2000 and enrolled for my masters.

    As part of the coursework in my masters course, I also learned a lot about image processing and image recognition and processing in my course on pattern recognition, where we had to write a program to identify number plates.

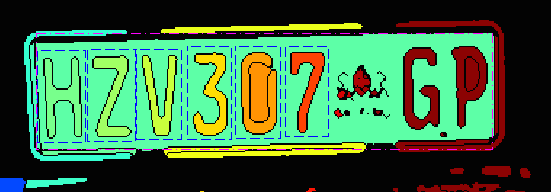

    Output from my number plate recognition progra

    For my actual Masters project, I inherited a Matlab/Simulink program which was written in typical crufty engineering style. It made extensive use of global variables, so many that there was a spreadsheet to keep track of the places the globals were used! It also made very little use of any higher-order programming techniques. In order to understand what was going on in there, I ended up writing a parser in Matlab to generate a call graph of the program and refactored the program mercilessly until it was manageable.

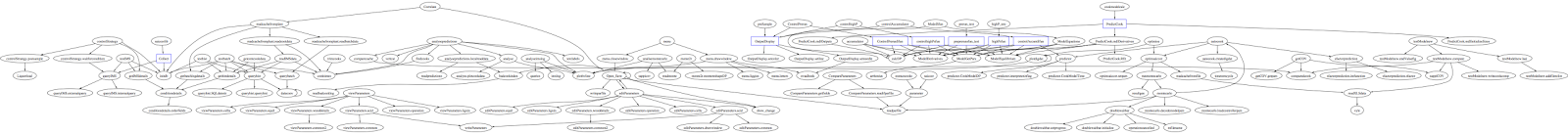

    The call graph from my Masters program

    This gave me very valuable experience in maintaining large programs and I started programming much more defensively to save someone working after me (or myself in the future) the trouble that I had to go through to get going on this program.

    With these kinds of engineering problem, you end up thinking a lot about the algorithm and the solution method, and often the solution is a single number, so you don’t really think about the program in terms of an interface. You write lots of code to read inputs from files or other computer systems, your program becomes unresponsive, or shows a progress bar for a couple of minutes and then spits out the answer in the form of that number, or perhaps formatted in a nice plot. I ended up having to run my program on many different computers to generate the data I was looking for and all this conspired to make my programs very non-interactive. My master’s code did actually have a GUI, but it was developed by my predecessor and was so difficult to maintain that I just ended up using it as-is.

    I learned LaTeX for typesetting my dissertation, which was also an exercise in non-interactive programming.  I migrated away from Windows, partly because I was convinced that Open-Source software was poised to take over the world and partly because Matlab ran faster in Linux than on Windows at the time. This move was another nudge away from GUIs as the support for the kind of click-and-drag programming that I was doing in VB and Delphi is not very deep in Linux. I also discovered the great power of the Unix command line, where a couple of basic programs strung together could solve problems I would have required lots of code for in Matlab.

    I ended up with a deep understanding of writing programs which look like data pipelines, with raw data entering one end, being processed by a number of programs and then ending up with postprocessing on the other end. However, I fell behind in the interface department. Since you could get the results you were looking for without providing user interaction, that seemed like an annoying and unnecessary side step.

    But text is ugly

    To produce good-looking output I learned about a number of different technologies that could be accessed in this data-flow fashion. I learned how to generate static PDF graphics from Matlab so that I could include it in my dissertation. I generated HTML output from many of my programs so that I could easily show tabular data. I still use these techniques to generate nicely formatted tables for beer scores.

    This brings us up to the end of my Masters in 2002. At the end of that year I started teaching, which opened up a whole new avenue of programming for me, but I think I will make that the topic of the next post, as this one is already quite long. Stay tuned for part 2.
